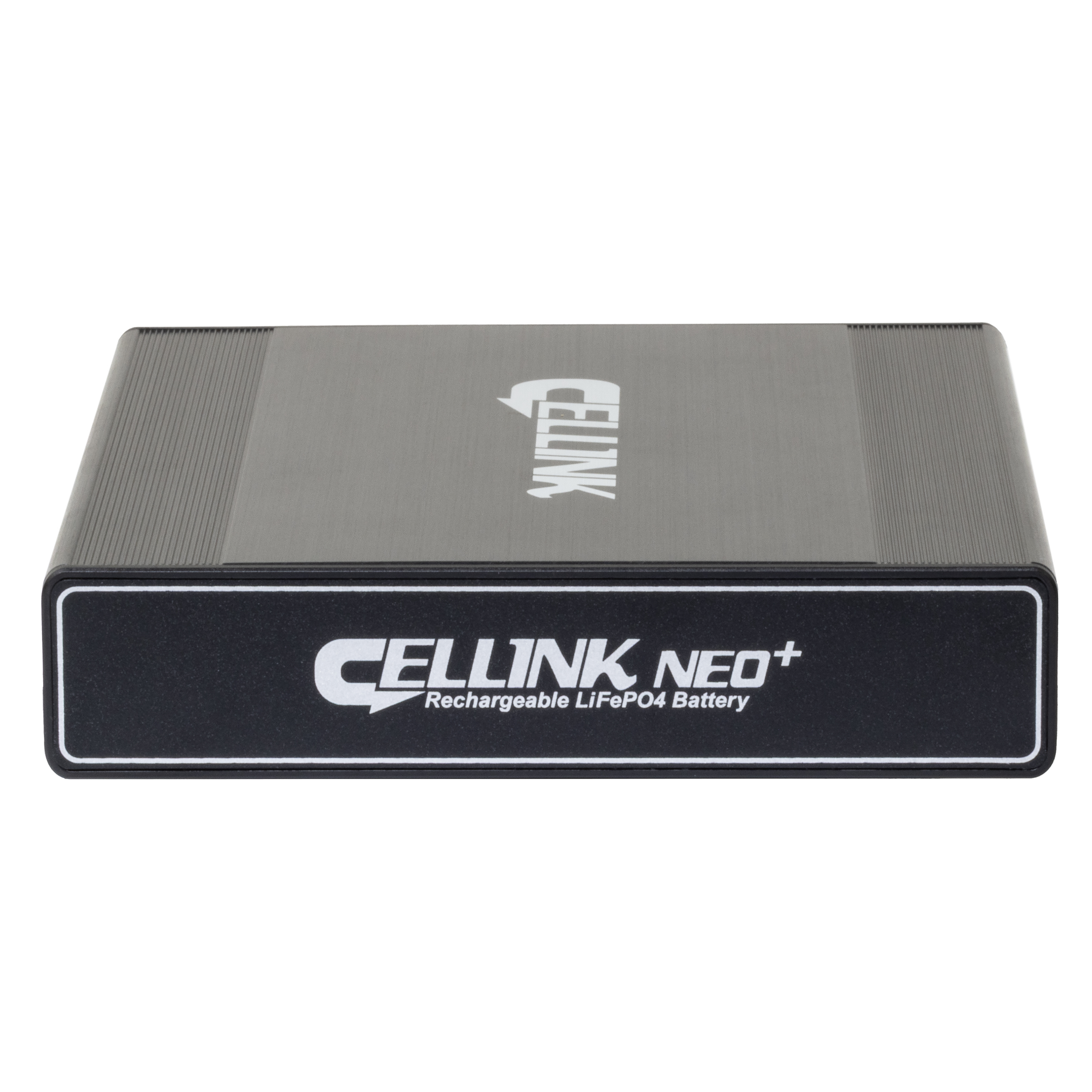

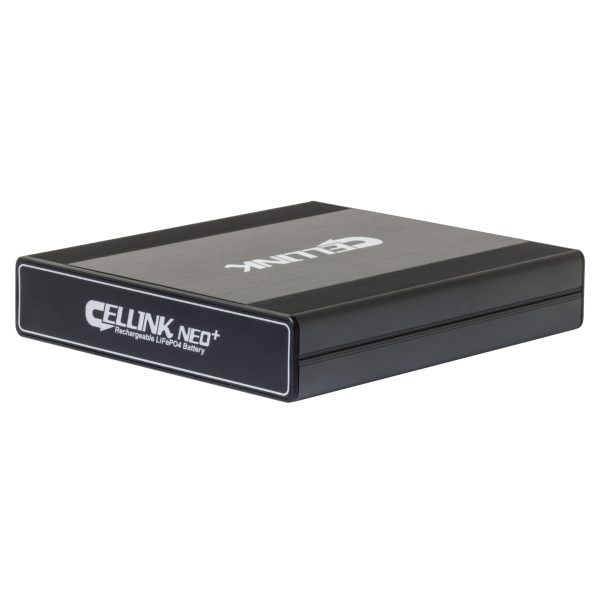

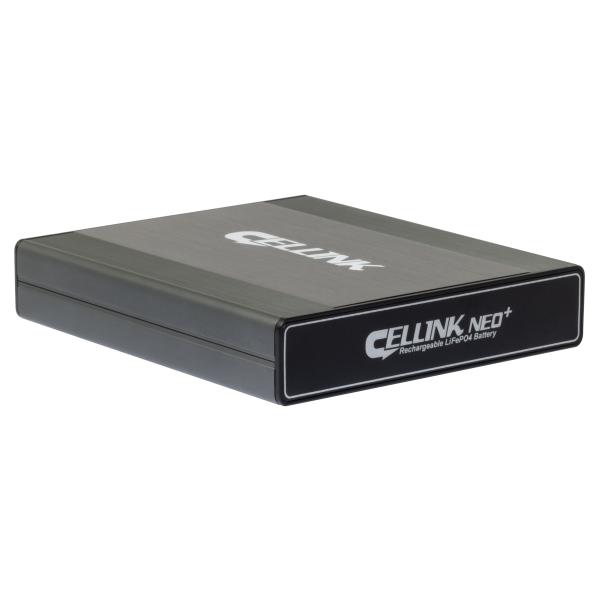

Expansion Pack for Dashcam - Cellink NEO80+S

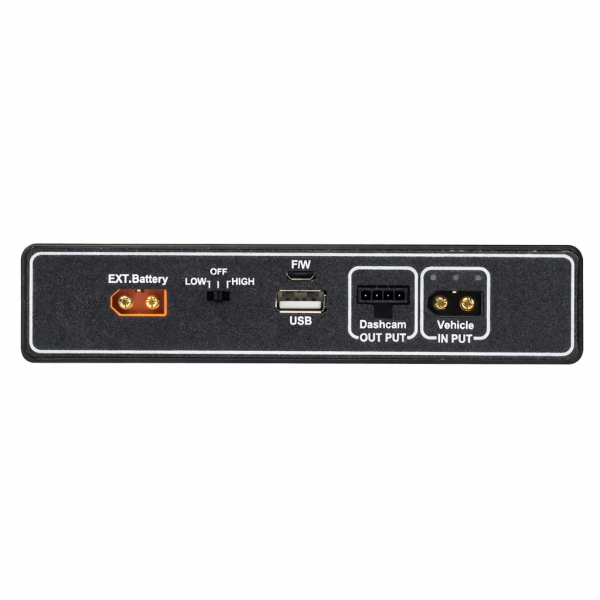

▷ Connector Discription
▷ EXT.BAT : Connecting terminal for extended battery
▷ (Charging current swith)
– Low : 5A Charging(Cigar lighter socket connection)
– Off : Power Off
– High : 7.5A (Fusebox connection)
▷ FW : Update Connector
▷ USB : 5V Output Connector
▷ OUTPUT : Connecting terminal for Dashcam
▷ INPUT : Connecting terminal for Fusebox or Cigar lighter socket
▷ Product Specifications
Input Power
Output Power
Charging Voltage
/ Current
Charging time
Hours of use
Battery used
Product capacity
Dimensions and Weight
Cigar lighter socket : 12V~17V 6A Max
Fusebox : 12V~17V 13A Max
DC 11V~14.2V 2A Max (Dashcam)
DC 5V 2A Max (USB)
Cigar lighter socket : DC 14.2V 5A Max
Fusebox : DC 14.2V 7.5A Max
Cigar lighter socket (5A Charging) : Within 100min
Fusebox (7A Charging) : Within 60min
About 33hours (Based on 2-CH dashcam within 3Wh)
LiFePO4
12.8V / 7,800mA / 99.84Wh
151[W] x 170[L] x 32.6[T] / 1.25kg
